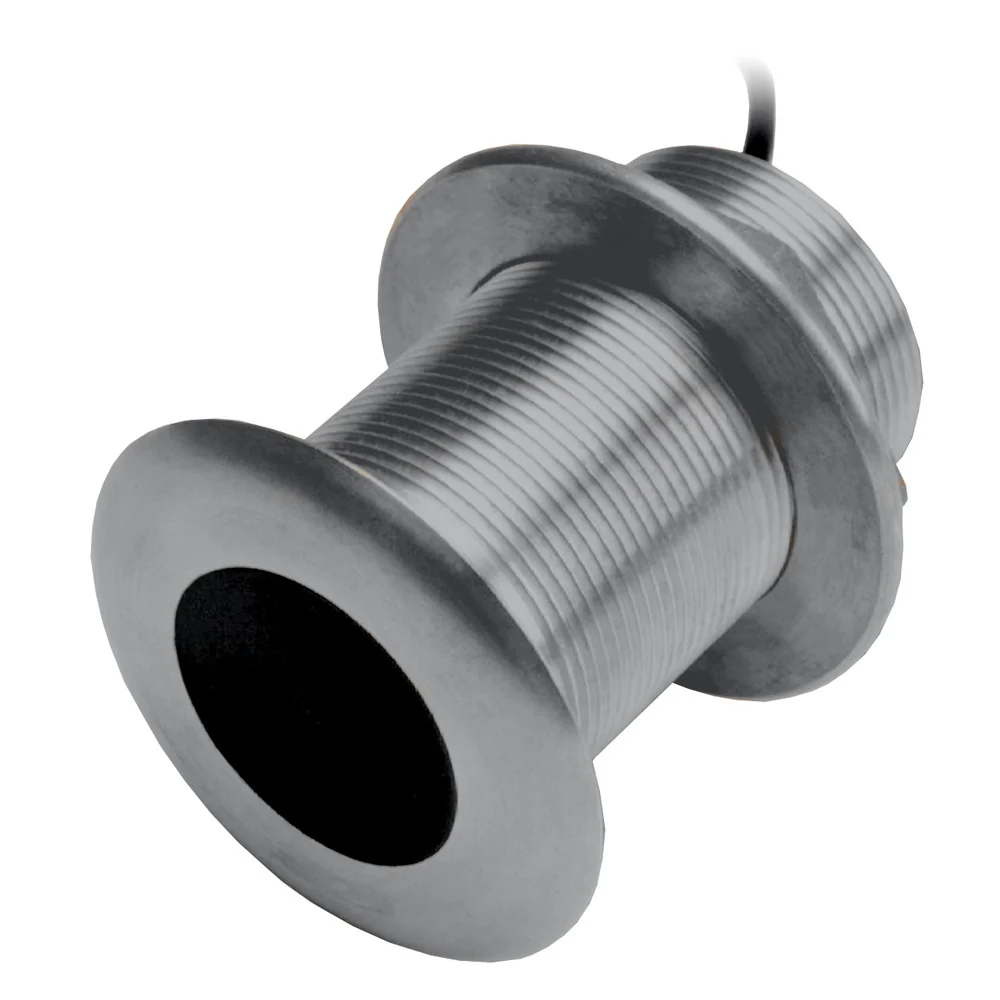

![Navico xSonic SS75M 20 Tilted Element TH Transducer - 600W - Stainless Steel [000-13910-001]](/images/theharborsupply.shop/images/product/navico-xsonic-ss75m-20-tilted-element-th-transducer-600w-stainless-steel-000-13910-001-1.jpg)
The Story
xSonic SS75M 20° Tilted Element TH Transducer - 600W - Stainless Steel
The SS75M is a Stainless Steel, thru-hull, tilted, medium-frequency (80-130kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.
Medium Frequency: CHIRP range is 80kHz-130kHz for good target detail in shallow water and excellent bottom tracking in deep water.
The 20° tilt is ideal for boats with a 16° to 24° hull deadrise.
Specifications:
- Temperature: Yes
- Speed Included: No
- Pins: 9
- Chirp: Medium
- Mounting Style: Thru-Hull
- Cable Length (Feet): 33'
- Imaging: Standard
- Box Dimensions: 5"H x 8"W x 12"L WT: 6 lbs
- UPC: 9420024162651
Description
xSonic SS75M 20° Tilted Element TH Transducer - 600W - Stainless Steel
The SS75M is a Stainless Steel, thru-hull, tilted, medium-frequency (80-130kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.
Medium Frequency: CHIRP range is 80kHz-130kHz for good target detail in shallow water and excellent bottom tracking in deep water.
The 20° tilt is ideal for boats with a 16° to 24° hull deadrise.
Specifications:
- Temperature: Yes
- Speed Included: No
- Pins: 9
- Chirp: Medium
- Mounting Style: Thru-Hull
- Cable Length (Feet): 33'
- Imaging: Standard
- Box Dimensions: 5"H x 8"W x 12"L WT: 6 lbs
- UPC: 9420024162651
