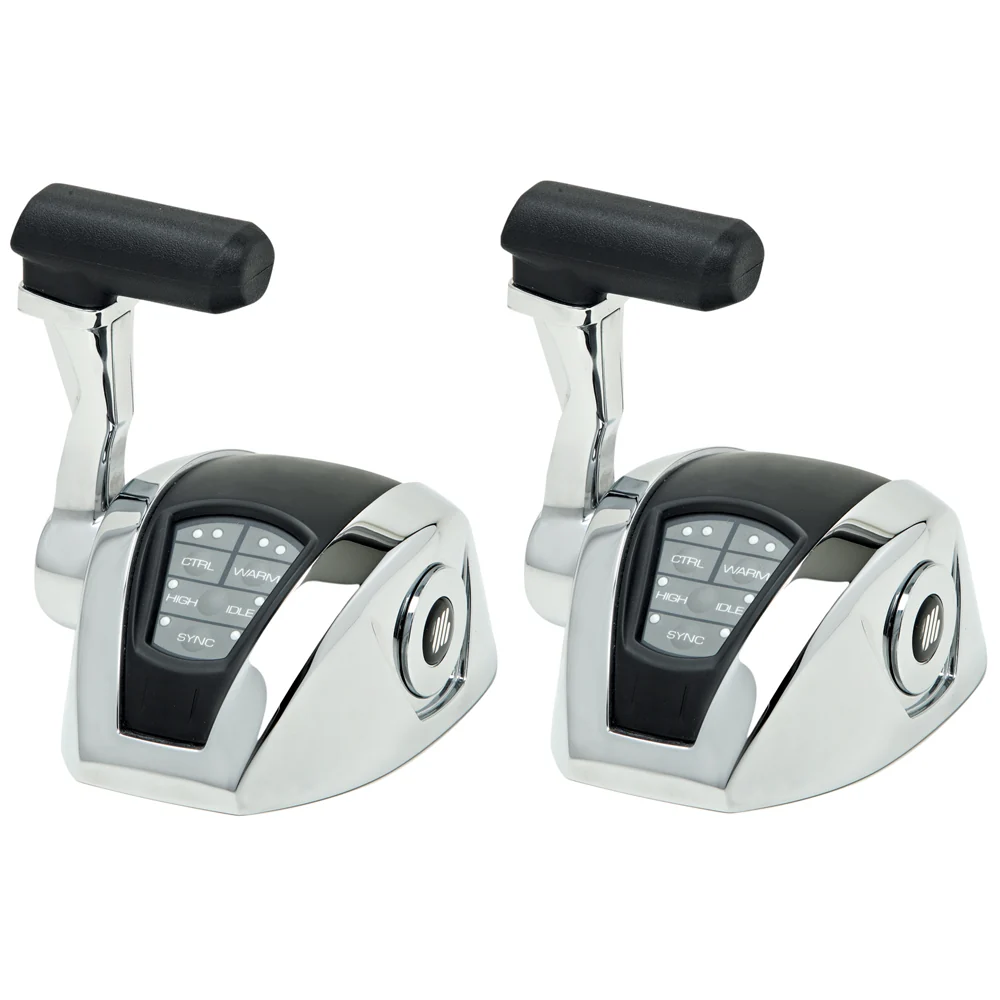

UFlex Power A Electronic Control Package - Single Engine/Dual Station - Electronic Throttle/Electronic Shift [EE12]

Power A EE12 - Electronic Control Package

-Single Engine/Dual Station - Electronic Throttle/Electronic Shift

Power A Mark II™ Electronics Control Systems

• Private Protocol can bus for data transmission

• Connection of multiple stations up to 4 controls

• Modular System

• Direct communication w/electronic engines (SAE J 1939 or NMEA 2000)

• Plug'N Play connectivity

• Automatic engines synchronization

• Dock Assist

• Fully programmable shift delays

EE12 Package Includes:

• 42009G - (2) PA2-B1 - Single Lever Control w/o Trim

• 42017F - (1) PA2-CU - Control Unit w/LED Diagnostc & Programming Screen

• 42018H - (1) PA2-VT - V-Throttle f/0-5V Interface

• 42028L - (1) PA2-NT - Network Terminator

• 42029N - (1) T-VT2 - Universal V-Throttle Cable 6.5'

• 42053K - (1) M-P3 - Main Power Supply Cable, 9.8'

• 71021K - (2) CAN-10 - Network Connection Cable 33'

• 73639T - (2) CAN-1 - Network Connection Cable 3'

• 42023A - (1) PA2-SU - Electronic Shift Unit

• 42060G - (2) M-S1 - Solenoid Shift Cable 3.3'

Quick Guide (pdf)
Brochure (pdf)
